Enumerate

Enumerate are lists of predefined values which can be used as a FieldType when designing Data Model and defining Schema. Enumerate values have various additional options : display widget, description or intended use, etc.

In the UI, when editing an asset, users will be presented with a list of available values only. When displaying an asset, nice widgets can be presented to users.

Enumerate usecase examples:

• status : OK, KO, N/A
• maturity_level : Good, Medium, Average, Bad, Terrible, NotAvailable, Unkown, ToBeChecked, …
• grade : A,B,C,D,E
• fruits : apple, pear, mango, …
• publish_status : draft, published, retracted
• color : red, blue, yellow

Create an enumerate

Enumerates are implemented with a builtin Schema _enumerate and can thus be managed from the Web UI, REST API, console CLI, import/export, etc.

- classname: _enumerate
  keyname: country
  displayname: Country List
  description: "List (enumerate) of valid countries"
  content: |
    - value: "Belgium"
    - value: "Canada"
    - value: "Australia"
    - value: "Italy"
    - value: "Other"

Use an enumerate

A schema can declare fields of dataformat: enumerate. The dataformat_ext contains the name of the enumerate to be used.

- classname: _schema
  keyname: vacation
  displayname: "Our Vacations"
  description: "Schema for our Vacations"

  (...)

  country:
     dataformat: enumerate
     dataformat_ext: country      // name of the enumerate to use

Every object will have an (optional) field named country with a value constrained by the available enumerate values (Belgium, Italy, …)

More attributes per enumerate value

A selected enumerate value can inject additional values to the object.

Consider this new country enumerate:

- classname: _enumerate
  keyname: country2
  displayname: Country List
  description: "List (enumerate) of valid countries"
  content: |
    - value: "Belgium"
      iso: BE                 // new attribute in addition to value
    - value: "Canada"
      iso: CA
    - value: "Australia"
      iso: AU
    - value: "Italy"
      iso: IT
    - value: "Other"
      iso: ??

Now, if your vacation Schema uses the country2 enumerate, each vacation object will have:

• a country attribute with the enumerate value selected (Belgim)
• a country__iso attribute with the associated ISO Country code.

The rule is that additional enumerate info besides value, get automatically injected as new fields with a name consisting of the original field name (country), plus a double underscore (__), plus the additional attribute name (iso)

Additional attributes have type

Consider the following enumerate (from the test suite):

- classname: _enumerate
  keyname: enumerate_test
  displayname: "Enumerate Test ABCDE"
  description: "Enumerate Test ABCDE"
  content: |
    - value: "A"
      long: "A - OK"
      widget: "green_circle"
      num: 1
      description: "Use if perfect"
      enumstring: string AAA
      enumint: int 111
      enumfloat: float 111.1
      enumboolean: boolean no
      enumdate: date 2026-01-15

    (...)


    - value: "complex"
      widget: 'html <span class="badge bg-dark">Widget</span> &nbsp;'
      enumstring: string test_enum_string
      enumint: int 123
      enumfloat: float 99.95
      enumboolean: boolean no
      enumdate: date 2026-03-14

Injected fields will be cast to the provided field type.

Supported types for additional attributes: string, int, float, boolean, date.

For example, numerical values can be used later in the processing of data (dataviews) to create numerical aggregates (min, max, avg, …)

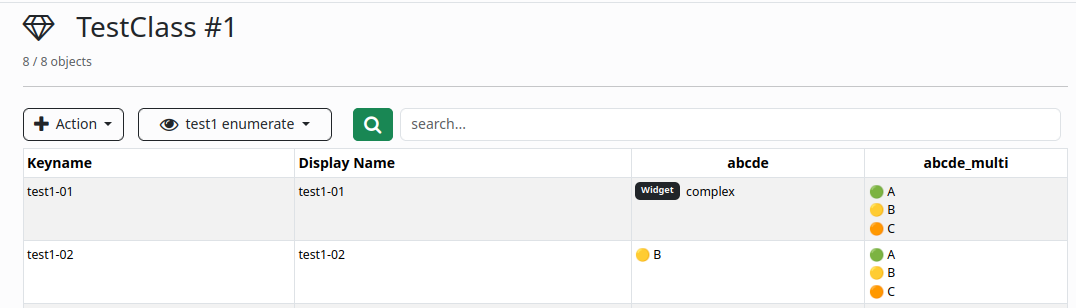

widget special attribute

A special widget attribute is available to provide enhanced visual effects, such as HTML pills, badge, etc.

Some predefined widget values automatically mapped to coloured bullets:

    "red_circle":    "🔴",
    "orange_circle": "🟠",
    "yellow_circle": "🟡",
    "green_circle":  "🟢",
    "purple_circle": "🟣",
    "brown_circle":  "🟤",
    "blue_circle":   "🔵",
    "white_circle":  "◯",
    "black_circle":  "⬤",      # large
    "default" : ""


Builtin enumerate

Cavaliba comes with the following builtin enumerates:

• sirene_category
• sirene_severity
• status_monitor_type
• ipam_vlan_family

You can inspect them in the Web UI.
