App Configuration
From the Cavaliba Web UI with appropriate permissions, you can configure many parameters and options for a cavaliba deployment.
This page explains all configuration options accessible through the Configuration section.
Usage
- Use the

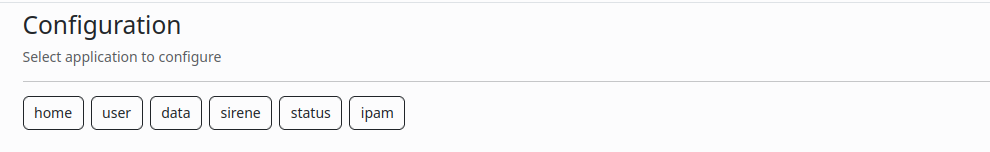

Configurationentry in the sidebar. - Navigate to the desired configuration section.
- Don’t forget to save after modifying an option.
- Effect is immediate. No reload/no restart needed.
Permission needed: p_conf_admin
HOME - Global Application Settings
GLOBAL_APPNAME
Default: Cavaliba
The main application name displayed as the top link in the sidebar and throughout the interface.
Customize this to match your organization name. Example: MyCompany IT Portal or Infrastructure Hub.
CSV_DELIMITER
Default: ;
Default column separator character for CSV files during import/export operations if not specified in the pipeline.
Common values are ; (semicolon) or , (comma). Used when auto-detecting CSV structure.
LOGO_SIZE
Default: 0
Width in pixels for displaying a company logo in the sidebar. Set to 0 to disable logo and show app name instead.
Logo file should be placed at /app/files/logo/logo.png. Recommended size: 200-300 pixels wide.
LOG_KEEP_DAYS_DEBUG
Default: 7
Number of days to retain DEBUG level log entries in the database for interactive access in the Web UI.
A daily housekeeping task automatically purges logs older than this value. Example: Set to 14 for 2 weeks of DEBUG logs.
LOG_KEEP_DAYS_INFO
Default: 120
Number of days to retain INFO level log entries in the database for interactive access in the Web UI.
A daily housekeeping task automatically purges logs older than this value. Example: Set to 365 for a full year of INFO logs.
LOG_KEEP_DAYS_WARNING
Default: 365
Number of days to retain WARNING level log entries in the database for interactive access in the Web UI.
A daily housekeeping task automatically purges logs older than this value. Example: Keep at 365 for compliance audit trails.
LOG_KEEP_DAYS_ERROR
Default: 365
Number of days to retain ERROR level log entries in the database for interactive access in the Web UI.
A daily housekeeping task automatically purges logs older than this value. Example: Increase to 730 for 2 years of error history.
LOG_KEEP_DAYS_CRITICAL
Default: 99999
Number of days to retain CRITICAL level log entries in the database for interactive access in the Web UI. A daily housekeeping task purges logs older than this value. The high default (99999 days) effectively keeps critical logs indefinitely.
LOG_MAX_ENTRIES
Default: 2200000
Maximum total number of log entries to maintain across all log levels in the database. When the total exceeds this limit, oldest logs are purged regardless of retention settings. Prevents database overflow.
LOG_EXCLUDED_IP
Default: `` (empty)
Space-separated list of IP addresses to exclude from logging to prevent cluttering logs with monitoring/health checks.
Example: 192.168.1.50 10.0.0.100 excludes these monitoring servers from appearing in logs.
LOG_DEBUG
Default: yes
Enable or disable DEBUG level logging in the application.
When set to no, DEBUG messages are not recorded even if the application generates them. Useful for reducing log volume in production.
SIDEBAR_ENV
Default: `` (empty)
Label for the environment displayed prominently in the sidebar to help users identify which environment they’re using.
Examples: PROD, TEST, DEV, or STAGING. Combine with SIDEBAR_COLOR for visual identification.
SIDEBAR_COLOR
Default: #000000
Sidebar background color in hexadecimal RGB format to provide visual environment identification.
Examples: #FF0000 (red for production), #FFAA00 (orange for staging), #00AA00 (green for test/dev).
REVISION_DISPLAY
Default: 10
Number of revision/audit events to display in the data change history UI for each data instance.
Shows recent changes in chronological order. Increase if you want to see more history on the detail page. Example: Set to 50 to see 50 recent changes.
REVISION_KEEP_DAYS
Default: 999
Number of days to retain revision/audit events in the database before automatic deletion.
A daily housekeeping task purges older revision records. Example: Set to 365 to keep exactly one year of audit trail.
BETA_PREVIEW
Default: no
Enable or disable beta/preview features that may be unstable or incomplete.
When set to yes, shows experimental features currently in development. Disabled by default for stability and reliability.
USER - User Authentication and Session Settings
CACHE_SESSION
Default: yes
Use Redis cache for user session storage to improve performance and enable sessions across multiple instances. When enabled, requires Redis connectivity. When disabled, sessions are stored in the database (slower but works standalone).
TRUSTED_ANONYMOUS_IPS
Default: `` (empty)
Comma-separated list of IP addresses or CIDR blocks that are allowed anonymous access to public pages without authentication.
Example: 192.168.1.0/24 10.0.0.0/8 allows these subnets anonymous access. CIDR notation is supported.
AUTH_LOGIN_REMOVE_DOMAIN
Default: yes
Automatically strip domain name from federated login usernames during authentication.
When enabled, john.smith@company.com becomes john.smith. Useful when domain is standardized across users.
AUTH_FEDERATED_LOGIN_FIELD
Default: X-User
HTTP header name that contains the authenticated username from the identity provider or reverse proxy.
The OAuth2 proxy or reverse proxy sets this header. Example: Remote-User if using Apache auth module.
AUTH_FEDERATED_EMAIL_FIELD
Default: X-Email
HTTP header name that contains the email address from the identity provider or reverse proxy.
Used to populate user email during just-in-time provisioning. Example: X-Remote-User-Email if using custom proxy.
AUTH_PROVISIONING
Default: manual
User account provisioning strategy for federated authentication. Options: manual, visitor, create, update, sync.
manual: No auto-provisioning, users must exist in Cavalibavisitor: Temporary access without creating permanent accountcreate: Create new user account with basic roleupdate: Update existing user attributes from IdPsync: Full sync of user attributes and groups
DATA - Data Management and Pagination Settings
DATA_DEFAULT_SIZE
Default: 200
Default number of data records displayed per page in data listings and search results.
Users can override this in the UI. Higher values mean less pagination but longer initial load. Example: Set to 100 for slower connections.
DATA_MAX_SIZE
Default: 500
Maximum number of records that can be requested per page in data listings to prevent performance issues.
Prevents users from requesting excessively large result sets. Set to 1000 if you have powerful servers.
DATA_BIGSET_SIZE
Default: 500
Threshold above which data listings switch to partial loading with AJAX pagination for performance.
When a dataset exceeds this size, only visible rows load initially. Set to 1000 for better performance with very large datasets.
EXPORT_INTERACTIVE_MAX_SIZE
Default: 5000
Maximum dataset size for interactive export via the web UI (CSV/Excel/JSON download).
Larger datasets cannot be exported interactively but can be exported via API or batch commands. Example: Set to 10000 for more generous limits.
SIRENE - Notification System Settings
SIRENE_APPNAME
Default: Sirene
Display name for the Sirene notification/alerting system shown on public status pages and in the UI.
Customize to match your organization branding. Example: MyCompany Alerts or Infrastructure Notifications.
PUBLIC_MAX_ITEMS
Default: 6
Maximum number of public incident messages displayed on the public status page.
Shows most recent/active incidents first. Limiting this improves page load time. Example: Set to 10 to show more incidents.
DEFAULT_DURATION_MINUTE
Default: 1440
Default duration in minutes before notifications auto-archive if not manually updated (1440 = 24 hours).
After this period, active incidents are automatically moved to archived status. Example: Set to 60 for 1-hour auto-archive.
PUBLIC_SORT_ORDER
Default: creation
Sort order for public messages: creation (newest first) or severity (most critical first).
Determines what users see first on the public status page. Example: Use severity to highlight critical issues.
PUBLIC_SKIP_TO_TRUSTED
Default: no
Skip the public status page for users from trusted IP addresses, redirect directly to authenticated status view. When enabled, trusted users bypass the public page. Useful when public page is less detailed than authenticated view.
USER_MAX_NOTIFICATION
Default: 100
Maximum number of users per notification distribution in a single batch to prevent queue overload.
Notifications with more recipients are split into multiple batches. Example: Set to 50 for smaller batches on slower systems.
EMAIL_MAX_NOTIFICATION
Default: 100
Maximum number of email addresses per notification send operation to manage SMTP server load.
Large email distributions are split into multiple batches. Example: Set to 25 if your SMTP server has strict limits.
EMAIL_MODE
Default: stdout
Email delivery method: stdout (logs to console), folder (writes to files), or smtp (sends via mail server).
Use stdout/folder for testing. Switch to smtp in production with proper CAVALIBA_EMAIL_HOST configuration.
EMAIL_FOLDER
Default: /app/files/mail/
File system path where email files are written in folder mode for testing or external mail system integration.
Directory must be writable by the application. Example: /var/log/cavaliba_mail/ for centralized email log location.
EMAIL_FROM
Default: noreply@findadomain.com
Source email address displayed to recipients as the sender of notification emails.
Must be a valid email format. Example: alerts@company.com or notifications@mydomain.org.
EMAIL_SMTP_BATCH
Default: 100
Maximum email recipients per SMTP connection to manage resource usage and prevent connection timeouts.
Improves efficiency by grouping recipients. Example: Set to 50 if SMTP server disconnects with larger batches.
EMAIL_PREFIX
Default: [Cavaliba]
Prefix automatically added to the subject line of new incident notification emails.
Helps users filter and identify incident emails in their inbox. Example: [MyCompany Alert] or [ALERT] .
EMAIL_UPDATE_PREFIX
Default: [Cavaliba Update]
Prefix added to the subject line of incident update notification emails to distinguish from initial notifications.
Helps users track which emails are updates vs. new incidents. Example: [MyCompany Update] or [UPDATE] .
EMAIL_TEST_SUBJECT
Default: Cavaliba - TEST TEST TEST - Please ignore.
Subject line used when sending test email messages to verify email configuration is working.
Should clearly indicate it’s a test to avoid confusion. Example: TEST Email Configuration - Ignore.
EMAIL_TEST_CONTENT
Default: Test.Ignore.
Email body content for test messages when verifying email system configuration.
Keep it brief and clear that it’s a test. Example: This is a test email from Cavaliba. Please ignore.
SMS_MAX_NOTIFICATION
Default: 30
Maximum number of SMS recipients per notification batch to manage SMS provider rate limits.
SMS providers typically have strict rate limits. Example: Set to 10 for conservative rate limiting.
SMS_QUOTA_PER_DAY
Default: 100
Maximum number of SMS messages per user per 24-hour period to prevent user overload.
Applied per recipient, not globally. Helps prevent notification fatigue. Example: Set to 50 for stricter limits.
SMS_MODE
Default: stdout
SMS delivery method: stdout (logs to console), folder (writes to files), or clicsecure (SMS provider API).
Use stdout/folder for testing. Switch to clicsecure in production with proper SMS provider credentials.
SMS_FOLDER
Default: /app/files/sms/
File system path where SMS files are written in folder mode for testing or external SMS system integration.
Directory must be writable by the application. Example: /var/log/cavaliba_sms/ for centralized SMS log location.
SMS_PREFIX
Default: [Cavaliba]
Prefix added to SMS text messages for new incidents to identify the source system.
Keep short since SMS has character limits. Example: [ALERT] for brevity.
SMS_UPDATE_PREFIX
Default: [Cavaliba Update]
Prefix added to SMS text messages for incident updates to distinguish from initial alerts.
Keep concise due to SMS character limits. Example: [UPDATE] for a shorter prefix.
SMS_TEST
Default: Cavaliba - TEST TEST TEST - Please ignore.
Test message content sent when verifying SMS configuration is working.
Should be brief and clearly marked as a test. Example: TEST SMS from Cavaliba - Ignore
SMS_WARNING
Default: IMPORTANT: All SMS activity is recorded for security purposes.
Warning message included in SMS notifications to inform recipients of logging/recording.
Legal/compliance requirement in some jurisdictions. Example: Note: This message is logged for compliance.
NOTIFY_FIELDS
Default: user group app site
Schema field names that define notification targets in the data schema for triggering notifications.
These fields must exist in your schemas. Example: notify_user notify_admin notify_site if using custom names.
NOTIFY_SUBSCRIPTIONS
Default: site:app
Schema relationships for automatic notification propagation using parent:child notation.
Notifications propagate from child to parent following these relationships. Example: app:service site:app customer:site for multi-level propagation.
STATUS - Status Monitoring Settings
STATUS_APPNAME
Default: StatusPage
Display name for the Status Monitoring application shown on public pages and UI navigation.
Customize to match your organization branding. Example: Infrastructure Status or System Health Monitor.
STATUS_RAW_KEEP_DAYS
Default: 7
Number of days to retain raw detailed status check results in the database.
Raw data provides minute-by-minute history. Daily housekeeping purges older data. Example: Set to 14 for 2 weeks of detailed data.
STATUS_SAMPLE_HOUR_KEEP_DAYS
Default: 31
Number of days to retain hourly aggregated status sample data in the database for trend analysis. Hourly samples provide summarized trends with lower storage impact. Retained longer than raw data for long-term analysis.
IPAM - IP Address Management Settings
IPAM_APPNAME
Default: IPAM - IP Management
Display name for the IPAM (IP Address Management) application shown in navigation and public-facing interfaces.
Customize to match your organization naming conventions. Example: IP Address Management or Network Planning.
