DataViews

A dataview is a useful component in Cavaliba to improve access to relevant information.

It enables data administrator to create predefined views of Schemas and objects. These predefined views contains subsets of fields from a Schema. Users can select a dataview from a list in the Web UI for faster access to the data they need.

You can define multiple DataViews per Schema for different type of users or different needs.

For exeample, a site Schema describing various locations, headquarters, facilities, factories, buildings, for a company, could use an ‘Address’ dataview, which would display only the relevant fields to Postal/Address such as City, Zipcode, Street, Country. Other dataviews for the same Schema could present Organization, Key Figures, Activities, etc.

DataView objects

DataViews are implemented as a special builtin Schema and can thus be managed from the Web UI, REST API, console CLI, import/export, etc.

Create a Dataview

- classname: _dataview
  keyname: site_postal
  target_class: site
  displayname: MySiteView_postal
  description: This View displays Geographical information about sites
  content: |
    columns:
      - SiteName:
          from: keyname
      - Address:
          from: address
      - zipcode
      - city
      - country
      - ISO
           from: country__iso


This configuration will create a dataview named site_postal for the (target_class) site.

The from option defines a source field which provides content for that column. An invalid from value will create an empty column. The intended use of the column/from pattern is to provide a way to provide nicer (custom, translated, compact, …) column names to users.

Some new operators may be added in the future, like aggregate values or computed values from other columns.

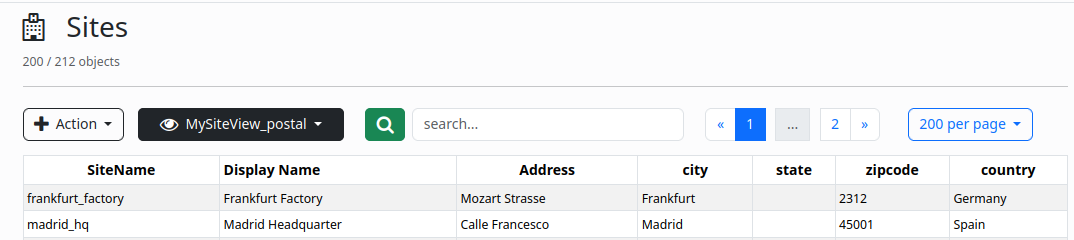

Use a dataview

In the Web UI, the dataview selector is next to the Action button.

Default dataview

A schema without any associated dataviews will present default informations in the Web UI, comprising keyname, displayname and last_update. This is not very useful.

You should create a default dataview for each Schema to present more relevant information by default.

By design, a default dataview is named with the schema name with an _default suffix.

Example (from the builtin Sirene Notification Application):

- classname: _dataview
  keyname: sirene_template_default
  target_class: sirene_template
  displayname: Default
  is_enabled: True
  description: Default DataView for Sirene Templates
  content: |
    columns:
       - keyname
       - displayname
       - Category:
            from: category
       - Severity:
            from: severity
       - Hint:
            from: hint
